Aurecon helps Atholl Towers scoop 5-Star Green Star SA Rating

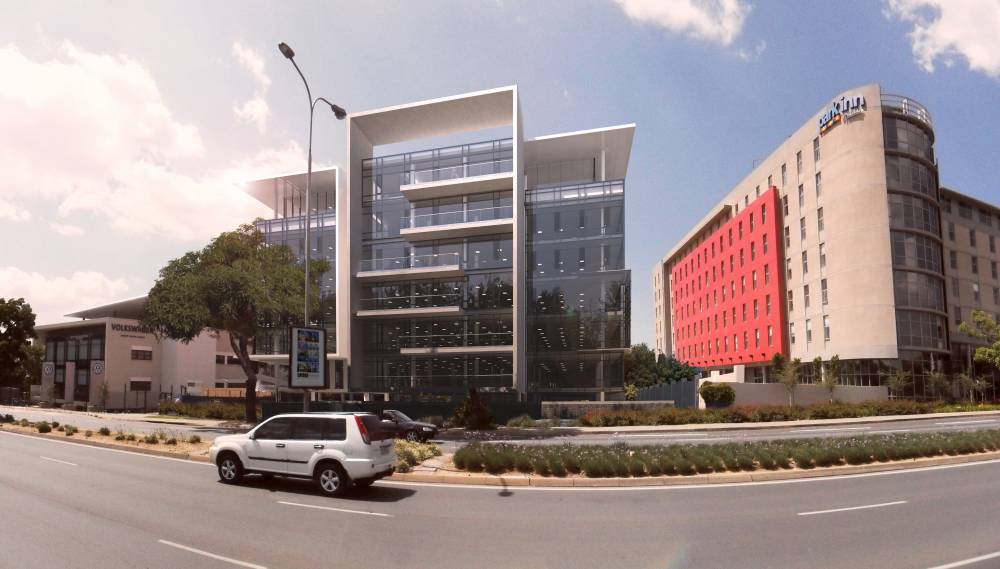

Located between Katherine and Patricia streets in Sandton, Atholl Towers was developed in two phases. The first phase was completed in 2011 and comprises a 4 500 m² office building with the Volkswagen Group South Africa’s Sales and Marketing Operations as tenants. The second phase, which was completed in April 2015 consists of 10 211 m² of offices and 480 parking bays, with five basement levels.

Marni Punt, Environmental Sustainable Design (ESD) Consultant at Aurecon, says the building is a modern, iconic design with open concept spaces. Some of the noteworthy aesthetic features include full-height façades, frameless glass and overhanging elements that create uniquely framed views of a shared public outdoor area between the two phases.

“Aurecon’s ESD team worked closely with AMA architects and other project consultants to create an exceptionally energy- and water-efficient building that meets the sustainable development needs of the client. For example, the frameless, full-glass façade is not only energy efficient, but it has a self-cleaning silicone base that ensures minimal maintenance over the coming years,” says Punt.

Some of the other energy efficiency features include optimised air conditioning, a central heat recovery system and motion sensor light fittings. The domestic hot water system is integrated with the air conditioning system to receive recovered heat during cooling or simultaneous cooling and heating modes. When cooling is not required by the air conditioning system, it acts as an air-cooled heat pump to efficiently deliver heat to the domestic hot water system.

 Sustainability initiatives that were incorporated include the use of recycled shutter boards for concrete casting, recycled steel components, the use of low Volatile Organic Compound (VOC) paint, low formaldehyde timber and finishes, the smart application of insulation materials and blinds to maximise thermal comfort for building occupants, as well as a rainwater harvesting and water conservation systems. Otis GeN2 regen drive elevators, which are up to 75% more efficient than non-generative drive lifts, complete the green features.

“We initially set out to achieve a 4-Star Green Star SA – Office v1 Design rating but, by incorporating extra cost-effective green features and initiatives, we were able to achieve the 60 points required by the GBCSA for a 5-Star Green Star Rating without incurring additional costs for the client. Atholl Towers marks the first Speculative Green Star Rated building for ALW Estates and Aurecon is proud to be involved in this landmark achievement for our client,” says Punt.

Optimising the building’s efficiency

While the building is efficient in terms of energy and water consumption, the project team took the concept of ‘building efficiency’ one step further when planning the design, layout and building services. Instead of simply looking at the savings for the client, the team put a great deal of thought into the use of the building by the client’s clients – in other words, the future tenants.

“Building efficiency refers to the efficiency of the usable area to meet functional needs such as tenants’ work flow requirements, office design, and personnel comfort. The efficiency of a building is dictated by a variety of aspects including the building shape, core location, floor size, leasing depth and corridors. These are conventionally addressed in the building design stages but not conventionally carried over to the system design and building operational stages by its tenants,” explains Kyra Young, ESD Consultant at Aurecon.

The approach of the Atholl Towers Design team was to not only create a highly efficient design but also to ensure this was carried over into the operational stages of the building and maintained by any prospective tenant as well. Efficiency principles were also incorporated into the electrical and mechanical systems design of the building.

Aurecon has created a Building User’s Guide that includes details for tenants, owners and facility managers. Some of the efficiency initiatives include a power grid system that was planned around the building installation design. The power grid and outlets were designed in such a way that tenants will have flexibility in terms of how they plan and use their spaces.

“Tenants at Atholl Towers won’t have to lay a host of data cables after they move into the premises,” explains Young.  “Materials that will be needed to make layout changes for future tenants have been minimised. By thinking ahead and merging the building layout, systems and operational design, an innovative and highly efficient building that will have reduced measureable operational costs has been created. Tenant fit out costs and most importantly reduced impact on the environment will be direct results of these efficiencies,” says Young.

The project also has an extensive metering system connected to a fully automated Building Management System. A total of 55 power meters are distributed throughout the building and water meters have been installed for all major water uses. This is an important building management tool that will assist the facilities managers to efficiently manage the building in future. Access to consumption data is provided via the local facilities management PC or via a web browser. Trend logs will display the history of the water and electricity meter values, allowing usage trends to be accumulated and analysed to identify when and where peaks occur.

“Green initiatives like these help owners, tenants and building users understand how sustainable buildings are performing and where improvements could be made. Aurecon is proud to be a part of this noteworthy project,” concludes Young.
